Using unit: Hefei Wan Ye Hydraulic Components Co., Ltd.

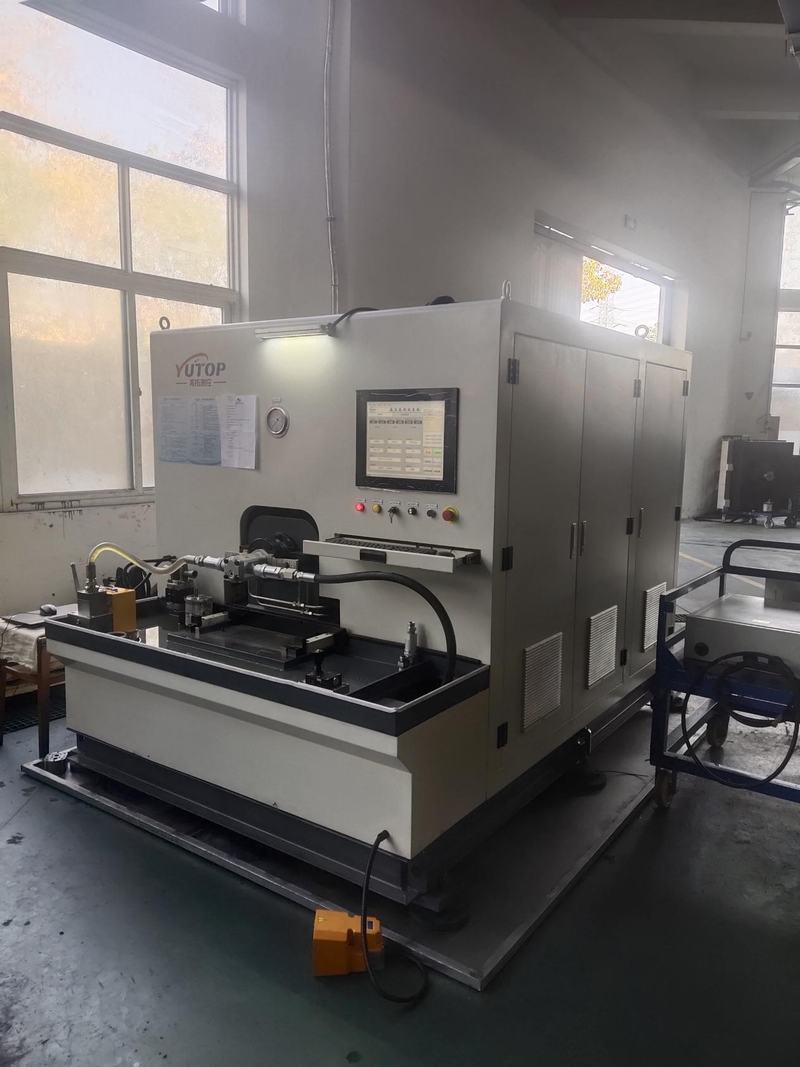

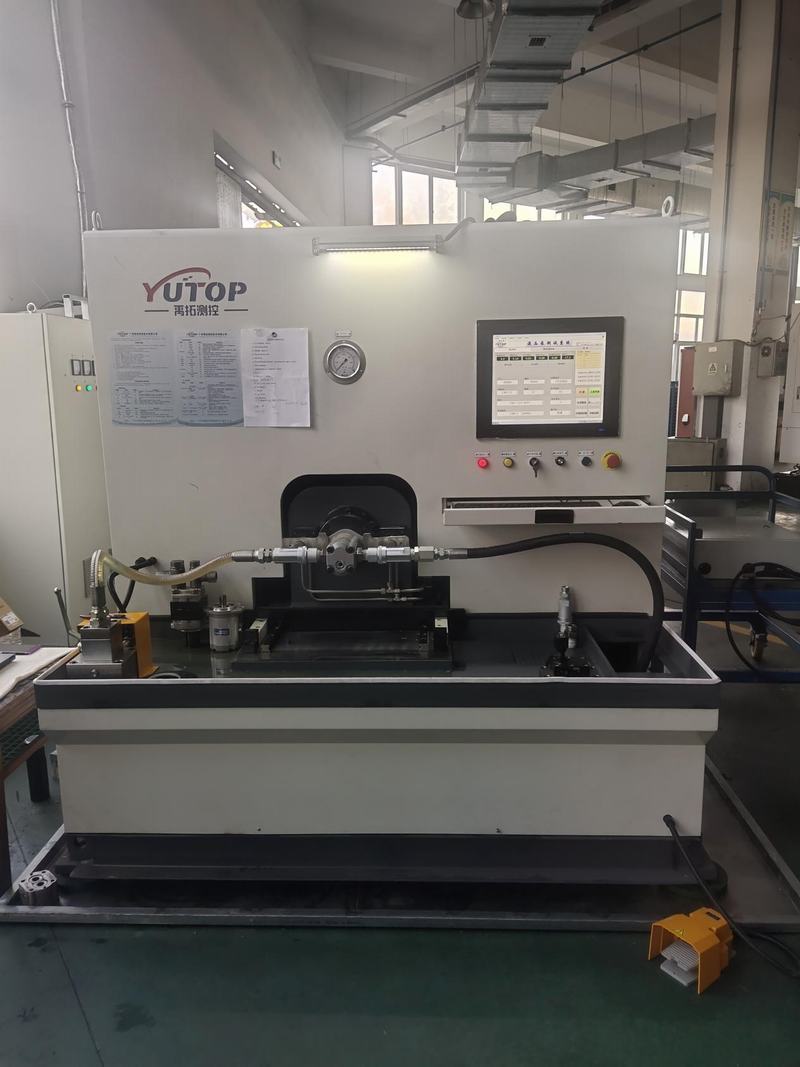

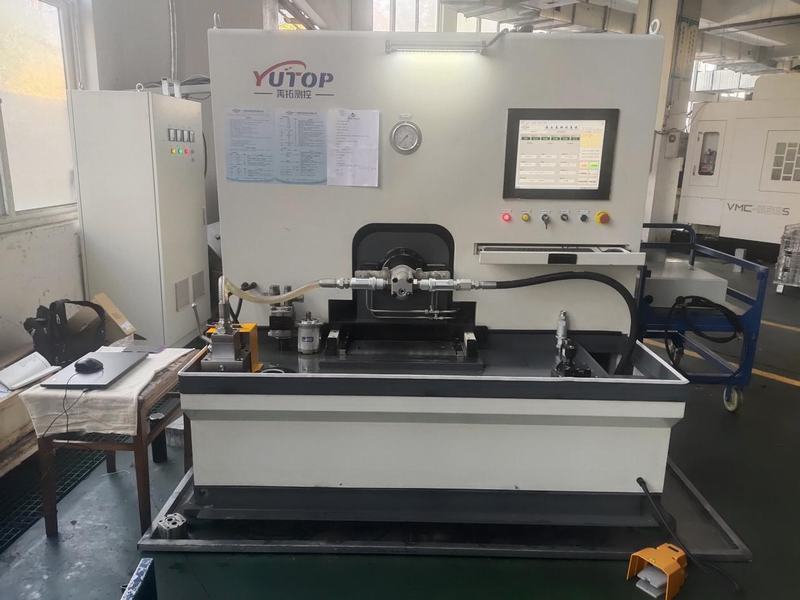

The test bench consists of a hydraulic station (with main and auxiliary oil tanks), a 22KW pump test bench, a control console, and a power cabinet.
Hydraulic Pump Testing: When testing the pump, the main motor directly drives the pump under test. A load is applied to the outlet of the pump under test via a load valve. During the test, data is collected through temperature, pressure, flow, torque, and speed sensors, enabling performance analysis of the hydraulic pump. The test bench is equipped with oil supply and return interfaces, pressure, temperature, flow rate, and speed digital displays. Hydraulic loading is used for pump testing.
System Temperature Control: Water-cooled heat dissipation is implemented. The customer provides the water source.
The oil tank uses an elevated structure to improve the suction capacity of the pump under test. The oil tank mainly consists of the tank body, air filter, oil level gauge, suction and return oil filters, level relay, temperature sensor, etc. It has functions such as oil level detection, return oil filtration and pressure difference alarm, oil tank temperature detection, and circulation filtration.
